Piling Contractors Sydney
Bored, CFA, secant, cased and sheet piling for residential, commercial and infrastructure projects across Sydney and NSW
Millent Civil Works is a family-owned Sydney piling contractor delivering foundation and ground-retention piling across residential, commercial, industrial and rail projects. From tight-access residential sites to high-rise and infrastructure works, we design and construct the right pile solution for the ground conditions and the program, backed by a modern fleet, smart data monitoring and in-house piling design.
Our piling services
Bored piles
Bored piles are cylindrical concrete elements, with or without reinforcement, installed using a kelly bar and auger on a drill rig. Length, diameter, material, shape and layout are all varied to suit the structural intent and the site’s ground conditions, making bored piling one of the most versatile foundation solutions for Sydney projects. On Western Sydney’s clay-over-shale ground, we take bored piers through the reactive clay and found them in the shale beneath, out of reach of seasonal movement.
Continuous flight auger (CFA) piles
CFA piles are formed by drilling a hollow-stem auger into the ground in a single pass. Once the design depth is reached, the auger is slowly withdrawn while concrete is pumped through the hollow stem to form the pile. Low-vibration and low-noise, CFA piling suits unstable ground and disturbance-sensitive sites, which makes it a frequent pick beside occupied buildings and rail corridors.
Secant pile walls
Secant piled walls are embedded retaining walls built as cantilevered or propped systems for deeper excavations. Interlocking primary and secondary piles form a continuous barrier that reduces the flow of soil and groundwater through the wall, a common choice for basements and deep shoring in built-up areas. On Sydney sites with high groundwater, a secant wall finished with a capping beam keeps the excavation dry and the neighbours’ ground where it belongs.
Cased piles
Cased piling suits weak, low-durability, sandy or riverbed soils. The pile is drilled and an 8-10mm steel casing inserted; the casing is slowly extracted as concrete is placed. This guarantees a structurally sound pile in ground that would otherwise collapse, the kind you strike on Sydney’s river flats and around Botany Bay.
Sheet piles
Sheet piling uses interlocking steel sheets driven to form a continuous wall for permanent or temporary lateral earth support, while reducing groundwater inflow. It’s a fast, reliable option for excavation support and water cut-off, particularly on temporary works where the wall comes out when the job’s done.
HOW SYDNEY GROUND CONDITIONS SHAPE PILE SELECTION
The right pile depends on what’s under your site, and Sydney’s geology changes street by street. We design for the ground first, then choose the rig.
Sandstone across eastern Sydney and the North Shore
Much of the CBD, the east and the North Shore sits on Hawkesbury Sandstone, often at shallow depth. Strong rock means shorter piles socketed into the sandstone rather than long friction piles, but sockets demand high-torque rigs and the right tooling, and rock levels can step sharply between boreholes. Our fleet handles rock sockets on constrained sites where crane access rules out larger machines.
Reactive clay over shale in Western Sydney
West and south-west of Parramatta, the Wianamatta shales weather to clays that swell and shrink with moisture. Shallow footings move with the seasons; bored piers taken through the clay and founded in shale don’t. This is our home ground. Our Penrith and Kemps Creek projects both sit on this geology, and the M12 corridor and Aerotropolis works ahead of Western Sydney will keep testing it.
Sand, alluvium and high groundwater near waterways
Sites near the Nepean, Georges and Cooks rivers and around Botany Bay sit on loose sands and alluvium, with groundwater sometimes less than two metres down. Open bores collapse in this ground, so cased piles and CFA earn their keep, and secant pile walls control groundwater on basement excavations. Dewatering near Botany Bay usually needs a licence, and disturbing soil below the water table can expose acid sulfate soils, so methods that limit drawdown protect both the program and the approvals. We delivered our Botany Rail project in these conditions.
Piling Capabilities
Where we deliver piling
Our piling supports a wide range of project types across Sydney and NSW:
- Small-to-large residential buildings
- Medium-to-high-rise commercial structures
- Public and industrial infrastructure, including rail

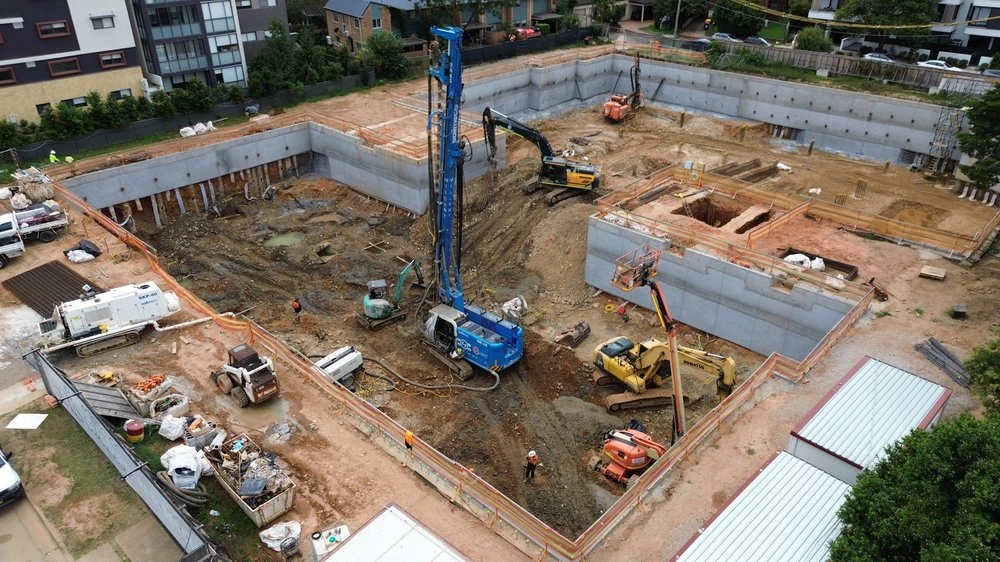

- Deep basements and split-level sites requiring shoring
Recent work includes our Penrith Project, Botany Rail Project and Kemps Creek Project.
Why builders choose Millent for piling
- In-house piling design. Full design-and-construct capability means we optimise the foundation solution to the site and the budget, not a one-size-fits-all spec.

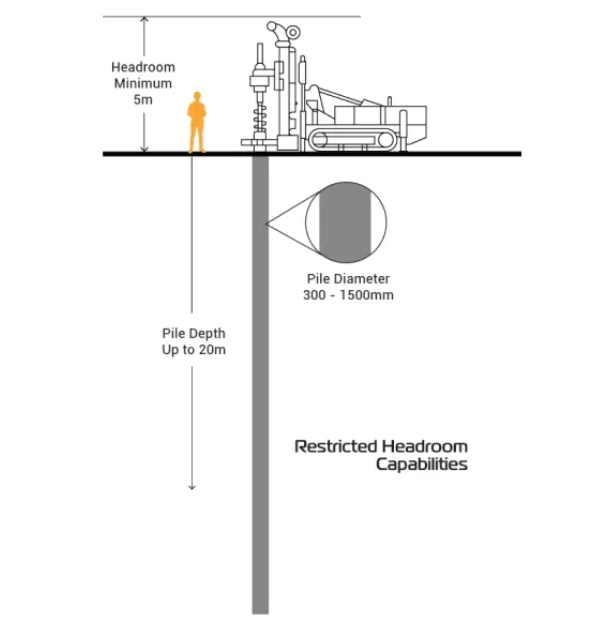

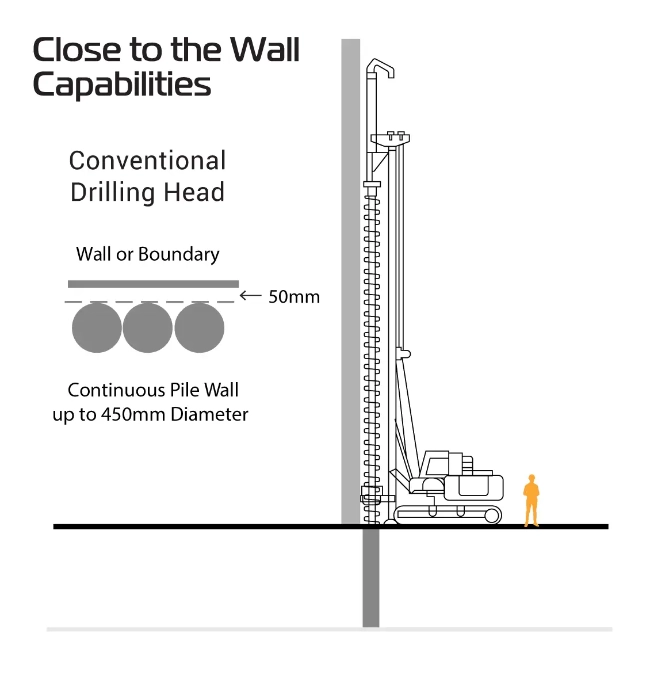

- Limited-access & restricted-headroom rigs. We pile within 50mm of a wall or boundary and work under headroom as low as 5 metres, on sites where standard rigs can’t operate.
- Pile integrity testing. Every job is backed by integrity testing and smart data recording of drilling parameters and pressure-meter tests.
- In-house surveyor. Independent quality checks for set-out accuracy on every pile.
- On-time, on-budget delivery. In-house cage production and an on-site mechanic keep downtime low and programs on track.
Our piling equipment
Piling rigs

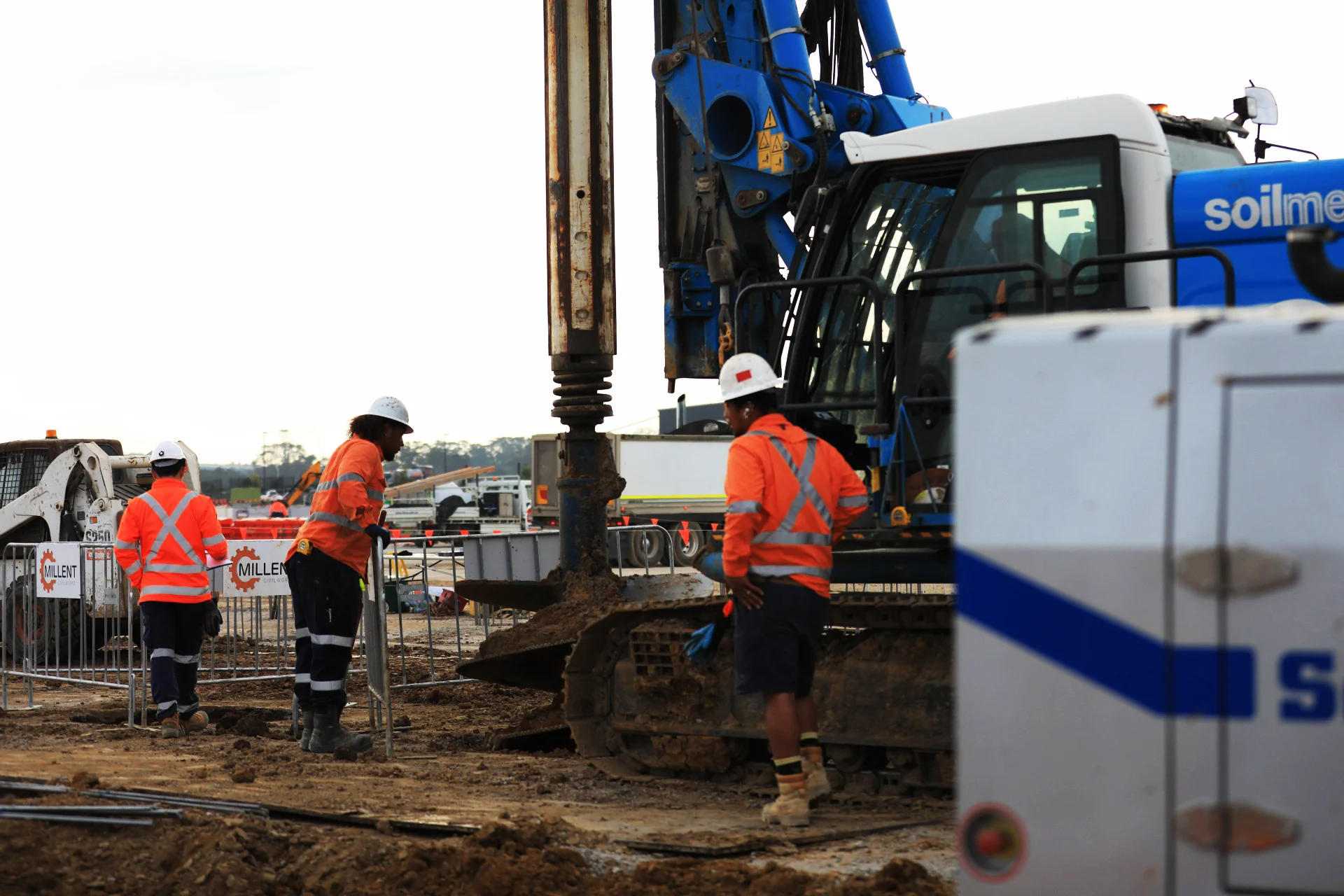

- Soilmec SR-45: Large-capacity rotary rig for deep, large-diameter bored piles, CFA and cased piling. The workhorse for high-rise and infrastructure foundations.
- Soilmec SR-20: Compact, self-erecting rotary rig for narrow and confined sites. Piles up to ~1,200 mm diameter and 40 m deep where access is tight but depth is required.
- Bauer BG 15: Versatile mid-size rotary rig for cased and uncased bored piles and CFA. Reliable across residential and commercial foundation work.
- Bauer BG 25: High-torque rig for larger-diameter, deeper piles, with low-headroom capability suited to basement and confined-height work.
- Soiltek S60: Compact restricted-access specialist. Modular multi-section mast for bored, CFA and down-the-hole work; craneable into sites larger machines can’t enter.
- Tescar CF3: Lightweight, low-headroom rig for tight and restricted-access piling. Narrow footprint and rubber tracks for confined spaces and sensitive surfaces.
Concrete pumps
- Schwing SP 1000: High-output stationary pump for grout, structural concrete and shotcrete, built for harsh, low-slump Australian mixes.
- Soilmec SKP80: Piling-matched concrete pump paired with our Soilmec rigs for continuous placement during CFA and bored-pile pours.
- Flowcrete FC7H8HT: Robust line pump supporting piling and shoring pours where consistent flow and placement control are critical.
- Transcrete P35: Compact, high-pressure trailer pump, Australian-built for local mix designs, for flexible placement on smaller and restricted-access pours.
Frequently Asked Questions
What type of piling is best for my site?
It depends on ground conditions, load requirements, access and neighbouring structures. Bored and CFA piles suit most foundations; vsecant and sheet piles are used where retention and groundwater control are needed. Send your geotechnical report to sales@millentcivil.com.au and we’ll recommend a buildable method for your site.
How do Sydney ground conditions affect pile choice?
Sandstone across eastern Sydney suits shorter rock-socketed piles. Western Sydney’s reactive clays call for bored piers founded in the shale beneath. Sandy ground with high groundwater near Botany Bay and Sydney’s rivers needs cased piles, CFA or secant walls to stop the bore collapsing and control water.
Do you handle tight-access or restricted-headroom sites?
Yes. Our limited-access rigs pile within 50mm of a wall or boundary and operate under headroom as low as 5 metres, which is one of our core strengths on constrained Sydney sites.
Do you offer design and construct for piling?
Yes, we provide full in-house piling design and construction, which streamlines coordination and keeps the solution within budget.
