Efficient Piling & Shoring Services for Sydney's Most Demanding Projects
Comprehensive piling services for construction and infrastructure projects. We use advanced equipment, integrated systems, and specialised teams to ensure quality outcomes.
Design & Construct
Millent Civil Works offers Design and Construct to streamline communication and coordination throughout the project. It reduces potential conflicts between parties and ensures accountability.
Its more cost effective and efficient as Millent can optimize the design to fit within budget constraints and streamline construction processes.
Our projects can be completed more quickly as early involvement of the construction team allows for concurrent planning and construction activities, potentially reducing overall project timelines.
Piling

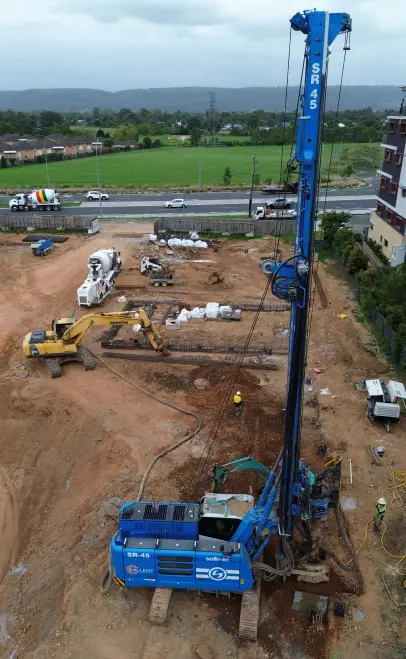

Piling is the core of what we do at Millent Civil Works. As a family-owned Sydney piling contractor, we design and construct bored, CFA, secant, cased and sheet piles for residential, commercial, industrial and rail projects across Sydney and NSW, from tight-access residential sites to high-rise foundations and major infrastructure works.
Every site is different, so we match the method to the ground conditions, load requirements and access constraints rather than forcing a one-size-fits-all approach. Bored and CFA piles handle most foundation work, while secant and sheet piling provide ground retention and groundwater control for deep basements and shoring in built-up areas.
Our in-house piling design and full design-and-construct capability let us optimise the solution to the site and the budget, and our fleet of limited-access and restricted-headroom rigs means we can work on constrained sites where standard machines can’t operate. Every job is backed by pile integrity testing, smart data monitoring and independent set-out checks from our in-house surveyor.
CAPPING BEAM

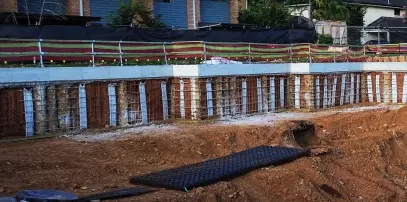

A capping beam is the reinforced concrete element cast along the top of a piled wall, tying every pile into one structure so the wall shares load rather than passing it into individual piles. It carries the reaction from the top row of anchors, walers or props, and it gives the basement structure above a straight, level line to be set out from.
We build capping beams to secant, contiguous and soldier pile walls, on our own shoring and on designs prepared by others. Pile trimming, reinforcement, formwork and the pour all sit with our crews, so the beam does not become a handover between the piling subcontractor and someone else.
Anchoring

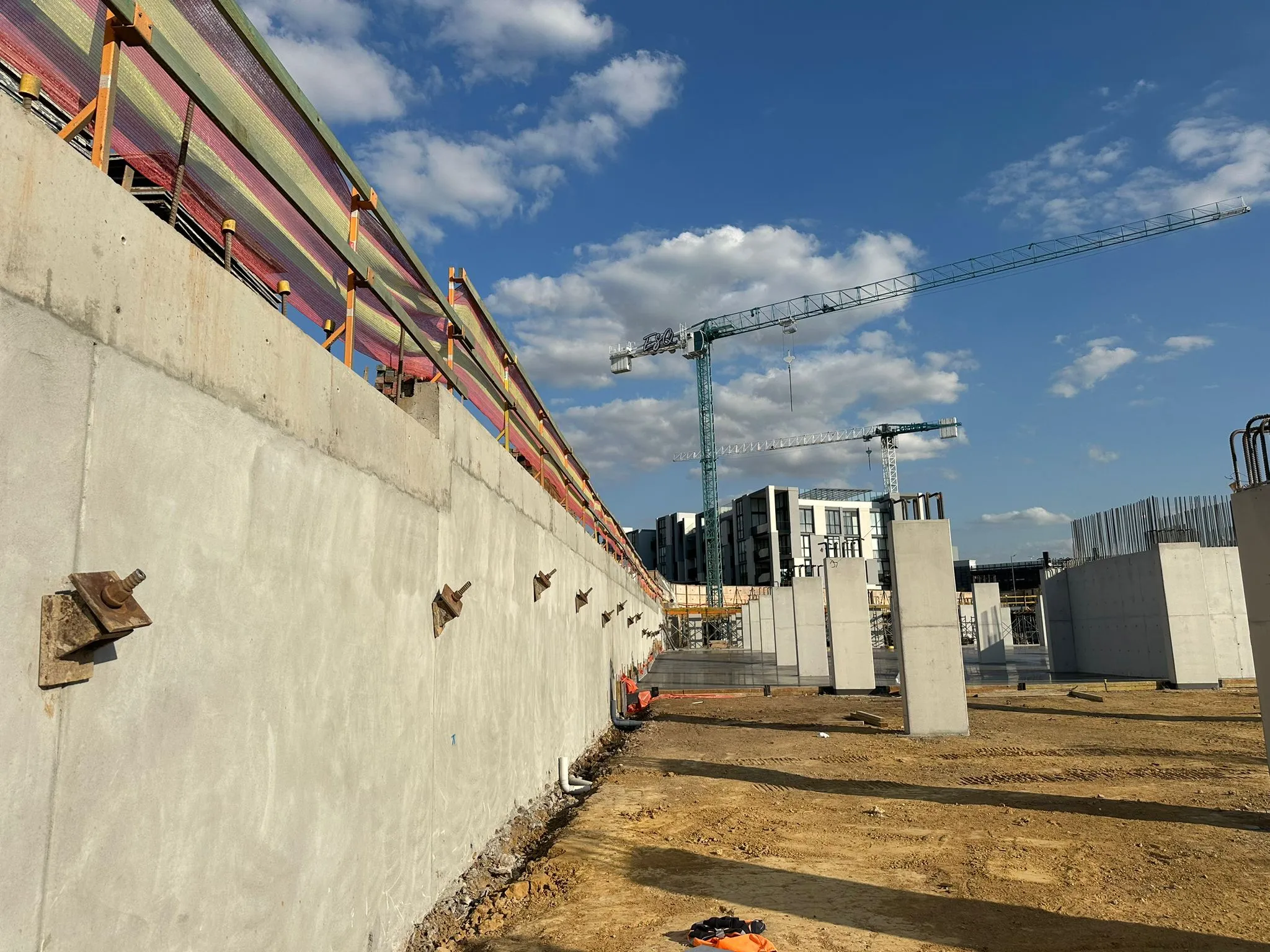

Anchoring is a structural element of the shoring works that demands precision. Every anchor is stressed and tested to the project specification, and we carry out the same testing on shoring designs prepared by others.
Types of anchors we can provide:
- Permanent and temporary ground anchors
- Sand anchors
- Soil nails and rock bolts
- Walers and bracing
Our capabilities:
- Anchor stressing and testing
- Restricted access, down to 2.1m headroom
Shotcrete

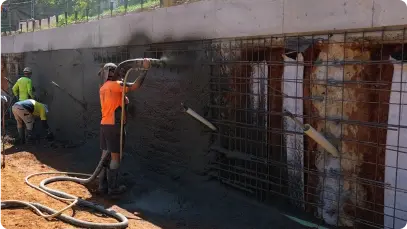

Shotcrete is a method of applying concrete projected at high velocity primarily on to a vertical or overhead surface. The impact created by the application consolidates the concrete.
Shotcrete is used to reinforce both temporary and permanent excavations. It stabilizes excavation for an underground parking structure or hi-rise buildings during construction.
Excavation

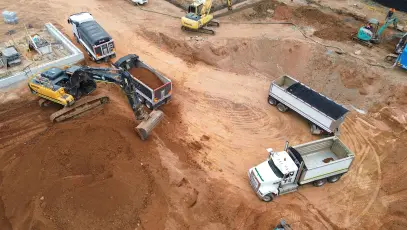

Millent Civil Works delivers bulk and detailed excavation on basements, shored sites and infrastructure projects. Because we install the piling and anchoring ourselves, the dig is sequenced against the retention system instead of handed between trades.
Excavation we deliver:
- Bulk excavation to design levels
- Detailed excavation for pile caps, footings, lift pits and trenches
- Basement and shored excavation
- Restricted access and split-level sites
Our capabilities:
- Excavators from 4.5t to 35t
- In-house surveyor for set-out and level checks
- Spoil classification and disposal planning
- Dewatering approvals coordinated before the dig starts
EQUIPMENT List

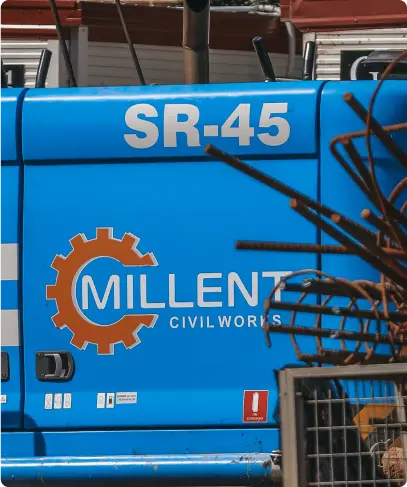

- Soilmec SR45 & SR20
- Bauer BG15 & BG25
- Soiltek S60
- Tescar CF3
- Tamrock TCH-700
- Wide range of excavators from 4.5t to 35t
- Schwing SP1000
- Soilmec SKP80
- Flowcrete FC7H8HT
- Transcrete MAX P35
Services
Comprehensive Piling services for development and infrastructure projects.
Quality results backed by integrated systems, advanced equipment, and specialised teams.
